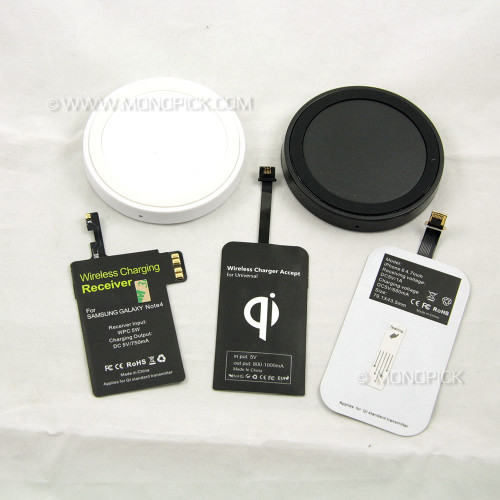

Universal QI Wireless Circular Charging Charger Kit (Pad and Receiver) Module for Andoid mobile phone

Universal QI Wireless Circular Charging Charger Kit (Pad and Receiver) Module for Andoid mobile phone
(SKU: CHSAGAN4002K/CHSAGAN4002W/CHSAGAS6001K/CHSAGAS6002K)

Special bundle sales: You will get 1 charging pad + 1 charging receiver!

Charging Pad:

• 100% Brand new
• Freely charge your phone wireless. Convenient to pick up and use your phone anytime.
• High power, quick-acting charging.
• Built-in Short-circuit protection/temperature regulation chip. Prevent overcharge & overheating. Safe, secure and reliable.
• Ultra thin, lightweight and portable. You can bring alone with you and use it everywhere indoor.

Charging Receiver:

• There are 2 types of micro USB wireless charging receiver. YOU MUST CHECK YOUR PHONE micro USB port FIRST before purchase to avoid dissatisfactions. You are welcome to contact us for details before purchase!
  (Type A: For "Wide Side Interface Downwards" Micro USB ports - e.g.: Samsung Galaxy series phones)
  (Type B: For "Wide Side Interface Upwards" Micro USB ports - e.g.: HTC One series phones)
• 100% Brand new
• This wireless charging receiver module comes with filter capacitor, strong anti-interference ability, more uniform and stable magnetic field.
• Qi wireless charging receiver, specially designed for phones with any types of micro USB port.
• Adding wireless charging feature by simply plug the receiver to your phone's micro USB port, works well with any Qi-enabled charger.
• Easy to use and FCC/CE/ROHS certificated.
• For Samsung Galaxy S4/S5/Note 3 and Note 4 user, you are welcome to purchase a Wireless Charging Pad + Receiver Module designed for your back cover. Please go to our eBay Store for more information.

Charging Pad Specifications:

• Power transform efficiency: ~76%
• Wireless charging distance: 4-10mm
• Frequency: 100-200kHz
• Input: DC 5V 1500mA
• Output: DC 5V 800mA
• Size: Approx. 69mm x 69mm x 10mm (L x W x H)
• Net Weight: 40g (Charging Pad Only)
• With short circuit deisgn, overcharge protection circuit and temperature regulation chip
• Support One to One Charging
• Compatible for: Mobile phones which compatible with Wireless charging protocol of Qi v.1.0 + v.1.1) WPC Standard.
• Color: Black/White

Charging Receiver Specifications:

• Receiver Input: 5W
• Charging effeciency: >70%
• Wireless charging distance: 5mm
• Frequency: 100-200kHz
• Input: DC 5V 1000mA
• Charging Output: DC 5V 800mA-900mA
• Support One to One Charging
• Dimensions:
  (Module Size) 77mm x 47mm x 0.8mm (L x W x H)
  (Cable length) 25mm
• Compatible for: Any Qi Wreless Charging Pad which compatible with Wireless charging protocol of Qi v.1.0 + v.1.1) WPC Standard.
• Color: White

Package Included:

• ONE Charging Pad
• ONE Charging Receiver
• ONE USB Cable

Charging Pad - How to use:

• Put your charging Pad on a table or flat surface. Connected the charging Pad with a USB cable to a USB charger.
• The red LED light on the charging pad should turn on and ready for charging.
• Place your competible phone on top of the charging pad. Make sure the charging receiver module should face directly and in position to the charging pad, please refer to gallery photos for more information.
• The blue LED light is turn on and your phone is chaging.
• You might pick up your phone and use it anytime and the LED light should turn to red again.
• If you found LED lights are flashing. It means there is an error on the charging Pad. Please stop using it, replace a new USB Cable or charger and try again.

Charging Receiver - How to use:

• Open the back cover of your phone.*
• Plug the receiver module to your phone's micro USB port.
• Flip the receiver and close the back cover.
• Place the mobile phone onto the Qi wireless charging pad and it should start charging.
• *For those phones without removable back cover, simply plug the receiver module to your phone's micro USB port, then flip and cover the receiver using a snap on case as shown in gallery photos.

NOTES:

• There are 2 types of micro USB wireless charging receiver as shown in photo. YOU MUST CHECK YOUR PHONE micro USB port FIRST before purchase to avoid dissatisfactions. You are welcome to contact us for details before purchase!
  (Type A: For "Wide Side Interface Downwards" Micro USB ports - e.g.: Samsung Galaxy series phones)
  (Type B: For "Wide Side Interface Upwards" Micro USB ports - e.g.: HTC One series phones)
• For stable charging, we recommended you to use a USB Cable and Charger which support 2A or higher charging.
• Due to output voltage limitation, You should not able to use it to charge a tablet.
• We are not liable for any damage caused by incorrect installation or usage of this item. Please make sure you have the knowledge before using this item.
